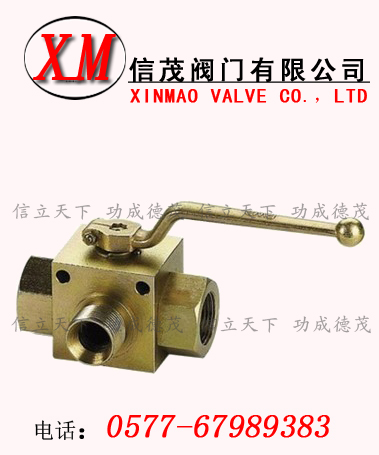

高壓三通球閥-KHB3K(BK3)高壓三通球閥圖形符號
型號說明
① 系列代號：KHB3K（BK3）系列二位三通球閥
② 連接代號：M** 、G** 、 **LR 、**SR、PT**、NPT**
③ 閥體材料：1-鋼、2-不銹鋼
④ 球體材料：1-鋼、2-黃銅、3-不銹鋼
⑤ 工作溫度：1、-25～＋100℃ 2、-30～＋170℃
⑥ 其他密封：2-丁晴橡膠、4-氟橡膠
⑦ 手柄形式：01-鋁質直柄02-鋁質曲柄03-鑄鋅直柄04-鑄鋅曲柄05-鋼質直柄06-鋼質曲柄09-不帶手柄
⑧ 設計序號：由生產商定
⑨ 表面處理：空白-磷化、G-電鍍黃鋅
高壓三通球閥-KHB3K(BK3)高壓三通球閥外形尺寸
尺寸表
連接口略圖:
|
簡略型號
|
PN(bar)
|
DN
|
LW
|
RA
|
d1
|
i
|
L
|
L1
|
B
|
H
|
h1
|
h2
|
h3
|
SW1
|
SW2
|
S
|
|
KHB3K-M16×1.5
|
500
|
06
|
06
|
11
|
M16×1.5
|
11
|
69
|
40
|
26
|
45
|
13.5
|
33
|
8
|
09
|
22
|
27.5
|
|
KHB3K-M22×1.5
|
500
|
08
|
08
|
16
|
M22×1.5
|
12
|
76
|
42
|
32
|
49
|
16
|
36
|
10
|
09
|
27
|
33
|
|
KHB3K-M27×1.5
|
500
|
10
|
10
|
20
|
M27×1.5
|
12
|
76
|
42
|
32
|
49
|
16
|
36
|
10
|
09
|
27
|
33
|
|
KHB3K-M30×1.5
|
400
|
16
|
15
|
24
|
M30×1.5
|
13
|
84
|
48
|
38
|
61
|
19
|
45
|
11
|
09
|
32
|
37
|
|
KHB3K-M36×2
|
315
|
20
|
20
|
30
|
M36×2
|
15
|
103
|
60
|
48
|
70
|
25
|
55
|
11
|
12
|
41
|
45.5
|
|
KHB3K-M42×2
|
315
|
25
|
23
|
35
|
M42×2
|
18
|
116
|
65
|
57
|
79
|
28.5
|
64
|
11
|
12
|
50
|
54
|
|
KHB3K-M52×2
|
315
|
32
|
32
|
40
|
M52×2
|
20
|
149
|
84
|
75
|
101
|
37.5
|
84
|
12
|
14
|
60
|
70
|
|
KHB3K-M60×2
|
315
|
40
|
38
|
45
|
M60×2
|
22
|
174
|
91
|
85
|
112
|
42.5
|
95
|
12
|
14
|
70
|
84
|
|
簡略型號
|
PN(bar)
|
DN
|
LW
|
RA
|
d1
|
i
|
L
|
L1
|
B
|
H
|
h1
|
h2
|
h3
|
SW1
|
SW2
|
S
|
|
KHB3K-G1/8
|
500
|
04
|
06
|
／
|
G1/8
|
10
|
69
|
40
|
26
|
45
|
13.5
|
33
|
8
|
09
|
22
|
35
|
|
KHB3K-G1/4
|
500
|
06
|
06
|
／
|
G1/4
|
14
|
69
|
40
|
26
|
45
|
13.5
|
33
|
8
|
09
|
22
|
35
|
|
KHB3K-G3/8
|
500
|
10
|
10
|
／
|
G3/8
|
14
|
72
|
42
|
32
|
49
|
16
|
36
|
10
|
09
|
27
|
36
|
|
KHB3K-G1/2
|
500
|
13
|
12
|
／
|
G1/2
|
16
|
83
|
48
|
35
|
49
|
17
|
40
|
10
|
09
|
30
|
40
|
|
KHB3K-G1/2
|
400
|
16
|
15
|
／
|
G1/2
|
16
|
83
|
48
|
38
|
61
|
19
|
45
|
11
|
09
|
32
|
42
|
|
KHB3K-G3/4
|
315
|
20
|
20
|
／
|
G3/4
|
18
|
95
|
60
|
48
|
70
|
25
|
55
|
11
|
12
|
41
|
49
|
|
KHB3K-G1
|
315
|
25
|
25
|
／
|
G1
|
21
|
113
|
65
|
57
|
79
|
28.5
|
64
|
11
|
12
|
50
|
56.5
|
|
KHB3K-G 11/4
|
315
|
32
|
32
|
／
|
G 11/4
|
22
|
110
|
84
|
75
|
101
|
37.5
|
84
|
12
|
14
|
60
|
62.5
|
|
KHB3K-G 11/2
|
315
|
40
|
38
|
／
|
G 11/2
|
24
|
130
|
91
|
85
|
112
|
42.5
|
95
|
12
|
14
|
70
|
61
|
|
KHB3K-G2
|
315
|
50
|
48
|
／
|
G2
|
26
|
140
|
100
|
105
|
131
|
52.5
|
112
|
12
|
14
|
80
|
62.5
|
|
簡略型號
|
PN(bar)
|
DN
|
LW
|
RA
|
d1
|
i
|
L
|
L1
|
B
|
H
|
h1
|
h2
|
h3
|
SW1
|
SW2
|
S
|
|
KHB3K-NPT1/8
|
500
|
04
|
06
|
／
|
NPT1/8
|
10
|
69
|
40
|
26
|
45
|
13.5
|
33
|
8
|
09
|
22
|
35
|
|
KHB3K-NPT1/4
|
500
|
06
|
06
|
／
|
NPT1/4
|
14
|
69
|
40
|
26
|
45
|
13.5
|
33
|
8
|
09
|
22
|
35
|
|
KHB3K-NPT3/8
|
500
|
10
|
10
|
／
|
NPT3/8
|
14
|
72
|
42
|
32
|
49
|
16
|
36
|
10
|
09
|
27
|
36
|
|
KHB3K-NPT1/2
|
500
|
13
|
12
|
／
|
NPT1/2
|
16
|
83
|
48
|
35
|
49
|
17
|
40
|
10
|
09
|
30
|
40
|
|
KHB3K-NPT1/2
|
400
|
16
|
15
|
／
|
NPT1/2
|
16
|
83
|
48
|
38
|
61
|
19
|
45
|
11
|
09
|
32
|
42
|
|
KHB3K-NPT3/4
|
315
|
20
|
20
|
／
|
NPT3/4
|
18
|
95
|
60
|
48
|
70
|
25
|
55
|
11
|
12
|
41
|
49
|
|
KHB3K-NPT1
|
315
|
25
|
25
|
／
|
NPT1
|
21
|
113
|
65
|
57
|
79
|
28.5
|
64
|
11
|
12
|
50
|
56.5
|
|
KHB3K-NPT 11/4
|
315
|
32
|
32
|
／
|
NPT 11/4
|
22
|
110
|
84
|
75
|
101
|
37.5
|
84
|
12
|
14
|
60
|
62.5
|
|
KHB3K-NPT 11/2
|
315
|
40
|
38
|
／
|
NPT 11/2
|
24
|
130
|
91
|
85
|
112
|
42.5
|
95
|
12
|
14
|
70
|
61
|
|
KHB3K-NPT2
|
315
|
50
|
48
|
／
|
NPT2
|
26
|
140
|
100
|
105
|
131
|
52.5
|
112
|
12
|
14
|
80
|
62.5
|
